On June 27, 2026, China's mandatory national standard GB 47955-2026 ("Safety Requirements for Combined Driving Assistance Systems of Intelligent Connected Vehicles") was officially approved, with enforcement beginning January 1, 2027. This is the first compulsory national standard for L2 combined driving assistance in China, introducing explicit requirements for multi-sensor redundancy design. The rigid regulatory constraints, combined with the large-scale deployment of urban NOA (Navigate on Autopilot), are driving front-view cameras through a generational leap from 8MP to 17MP super front-view modules.

However, when you receive a supplier quotation for a 17MP front-view camera module as a procurement manager or hardware engineer, the real challenge has just begun. Many manufacturers' 17MP products remain at the prototype stage — they can demonstrate functionality but lack the structural design, process planning, and automated production readiness required for volume manufacturing. This gap may appear to be an engineering detail, but it ultimately determines whether a product can cross the critical threshold from "lab-usable" to "automotive-grade mass-producible."

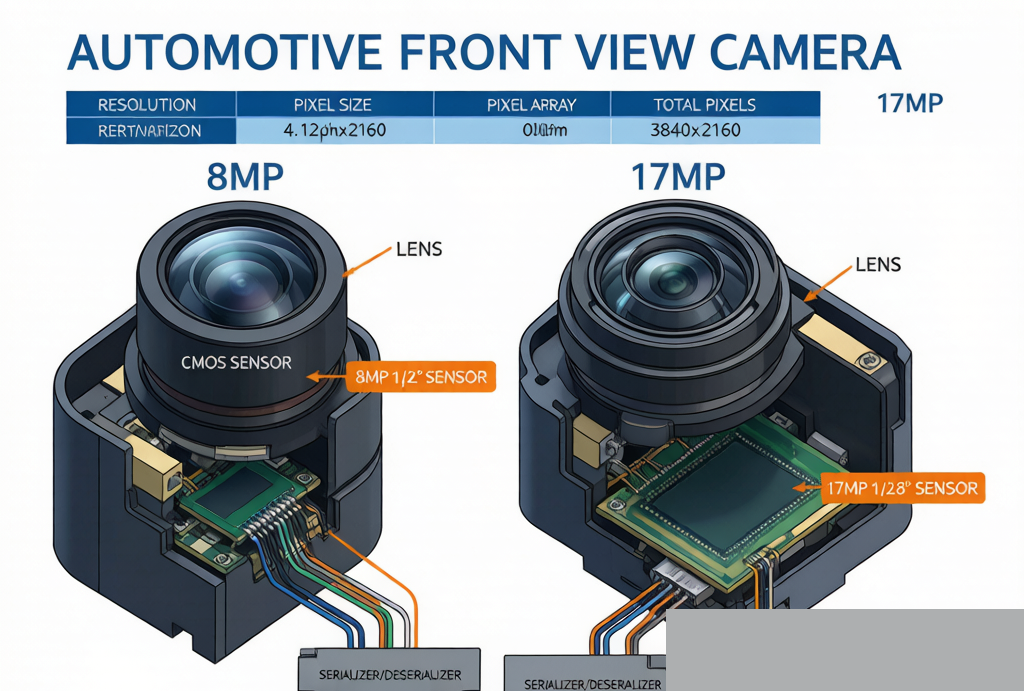

1. Doubling Pixels ≠ Doubling Performance: The Optical Precision Trap of 17MP

Why it's a trap: The jump from 8MP to 17MP may seem like a simple pixel increase from approximately 8 million to 17 million, but the demands on sensor area, lens resolution, and module assembly precision increase exponentially. The 17MP sensor employs a 1/1.17-inch large format with significantly higher pixel density than 8MP solutions, meaning every lens element and every assembly tolerance is magnified.

Where the trap lies: Traditional AA (Active Alignment) processes matured during the 8MP era, but 17MP demands far greater alignment precision — 0.2-micron platform accuracy is merely the entry ticket; multi-parameter synchronous coupling algorithms are the true differentiator. Some suppliers attempt to "upgrade" 8MP production lines directly for 17MP, resulting in cliff-like yield drops or severe imaging inconsistency. More insidiously, high pixel-density sensors are more sensitive to temperature variations. During -40°C to 85°C thermal cycling, inadequate lens assembly processes can cause micro-displacements in the module structure, leading to focal drift and image degradation.

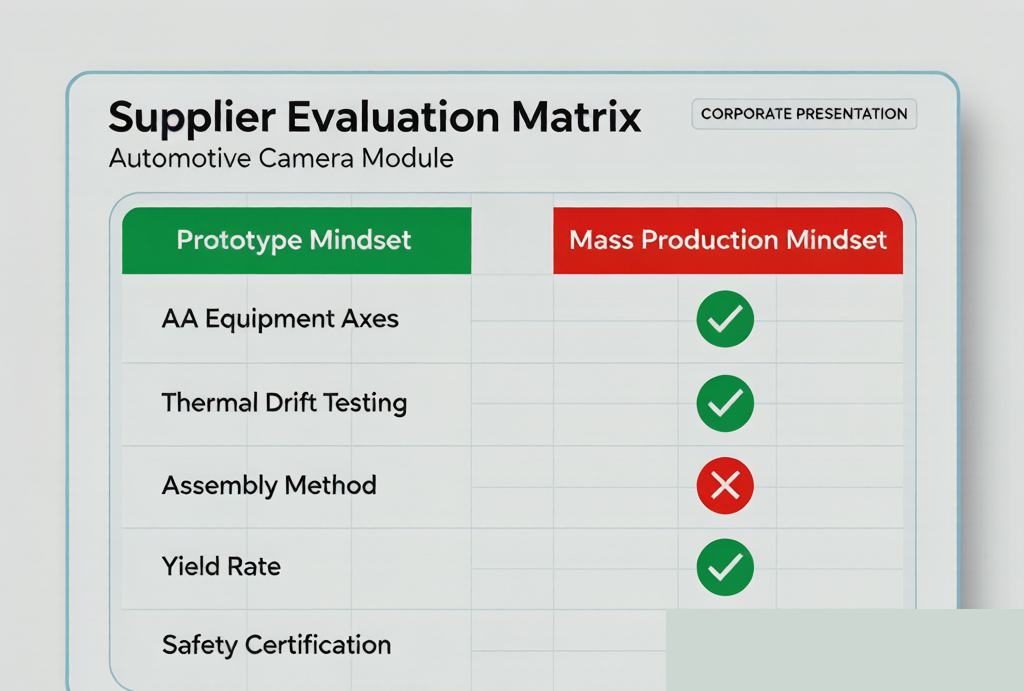

How to break it: When sourcing 17MP modules, the first step is not to check the pixel count on the spec sheet, but to ask the supplier three questions: How many axes does your AA equipment have? Can you provide MTF curves across the full -40°C to 85°C temperature range for drift testing? What is your mass production yield (not lab yield)? If a supplier is evasive on these questions, they are likely still at the prototype stage. Suppliers with genuine mass production capability will proactively provide full-temperature-range imaging consistency data and employ integrated assembly processes to replace traditional AA lens processes, mitigating detachment and thermal drift risks.

2. Thermal Design: The "Invisible Killer" of High-Resolution Sensors

Why it's a trap: 17MP sensors consume significantly more power than 8MP solutions during high-speed output. Combined with high-speed serializers like GMSL-3, internal heat density within the module rises sharply. In automotive environments, cameras are typically mounted behind the windshield near the rearview mirror area, where ambient temperatures can exceed 80°C during summer sun exposure. The module's own heat generation, combined with environmental heat, can easily trigger the sensor's thermal protection threshold.

Where the trap lies: Many 17MP prototypes did not adequately account for thermal dissipation paths during the design phase. They pass functional demonstrations in air-conditioned lab environments but suffer frame rate drops, noise spikes, or even thermal shutdowns during real-vehicle sun exposure testing. The challenge is compounded by the inherent contradiction between thermal design and module miniaturization — space is at a premium in automotive cameras, and adding heat sinks or thermal pads is structurally constrained. Some suppliers simply reduce operating frequency, effectively sacrificing the 17MP performance advantage — essentially paying for 17MP but getting a throttled 8MP.

How to break it: When evaluating 17MP modules, suppliers must provide thermal simulation reports and real-vehicle ambient temperature rise test data. Focus on three key metrics: sensor junction temperature under full load, frame rate retention at 85°C ambient, and MTF variation after 4 hours of continuous operation. Truly mature production solutions address thermal management at the structural design level — for example, upgrading front-to-rear housing connections from screw-fastening to laser welding not only improves sealing and structural rigidity but also enhances thermal conduction paths, allowing internal heat to dissipate more effectively through the housing.

3. From Screws to Laser Welding: The Hidden Threshold of Automated Mass Production

Why it's a trap: The assembly precision requirements for 17MP modules far exceed those of 8MP. Traditional manual screw-fastening can achieve high precision during prototyping, but consistency becomes impossible to guarantee at production volumes. An experienced worker may control torque well, but a different worker may not — and production line turnover is high.

Where the trap lies: Some suppliers achieve impressive prototype data through manual assembly, only to discover at mass production that manual consistency falls far short of automotive-grade requirements. More critically, 17MP modules require sub-micron optical axis alignment precision, and the random error of manual assembly far exceeds tolerance ranges. Additionally, traditional screw connections carry loosening risks under automotive vibration environments — this may have been barely acceptable in the 8MP era, but 17MP's high pixel density amplifies any minute optical axis deviation.

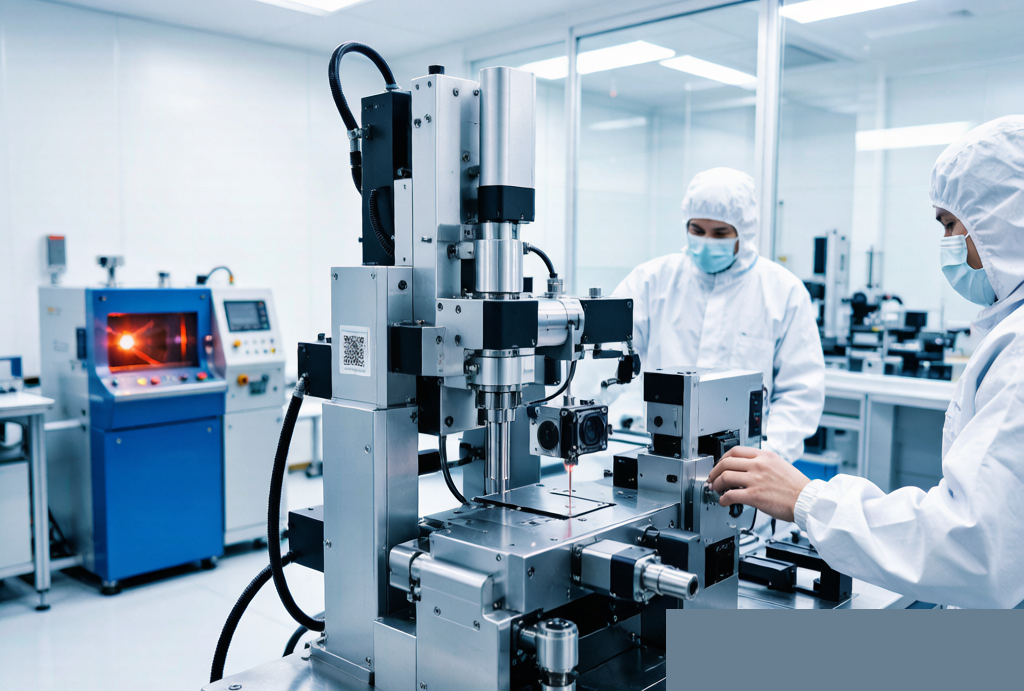

How to break it: When auditing suppliers, visit the production line directly. If 17MP module assembly still relies on manual screw-fastening, you can safely conclude they lack mass production capability. A production-oriented process should exhibit at least three characteristics: first, laser welding replacing screw connections for fully automated assembly; second, multi-axis AA equipment with closed-loop feedback algorithms achieving sub-micron alignment; third, fully automated optical testing stations performing 100% inline inspection of MTF, distortion, and stray light. These are not nice-to-haves — they are the baseline for 17MP automotive-grade mass production.

4. Functional Safety Certification: It's Not About the Certificate, It's About System Capability

Why it's a trap: The new GB 47955-2026 standard imposes explicit safety requirements on combined driving assistance systems. As the core perception sensor, the 17MP front-view camera must meet ASIL-B functional safety levels. Many procurement professionals equate ASIL-B certification with a certificate, assuming that "having the document" is sufficient.

Where the trap lies: ASIL-B certification is not a single document — it is a complete functional safety management system spanning requirements analysis, hardware design, software implementation, and verification validation. Some suppliers obtain certification certificates but have only achieved document-level process compliance; their product-level FMEDA (Failure Mode and Effects Analysis) has not genuinely covered all critical failure scenarios. More insidiously, functional safety requirements must be maintained throughout the entire product lifecycle — design changes, component substitutions, and process adjustments all require safety impact reassessment. Without a complete change management process, the certification certificate is essentially meaningless.

How to break it: When auditing a supplier's functional safety capability, look beyond the certificate to three things: first, whether the FMEDA report covers failure modes for all critical components including sensors, lenses, and connectors; second, whether a complete DIA (Development Interface Agreement) defines the functional safety responsibility boundaries between parties; third, whether the supplier holds comprehensive certifications across ISO 26262 (functional safety), ISO/SAE 21434 (cybersecurity), and ISO 21448 (SOTIF — Safety of the Intended Functionality). Only suppliers with all three certifications demonstrate a systematic understanding of automotive-grade safety frameworks.

The transition of 17MP super front-view cameras from concept to mass production is, on the surface, a pixel upgrade, but fundamentally a comprehensive leap across manufacturing processes, thermal management, automated production lines, and functional safety systems. The countdown to the mandatory standard has begun, and the window for suppliers to shift from "prototype thinking" to "production thinking" is rapidly narrowing. Jinshikang Technology specializes in camera module manufacturing, serving OEM/ODM projects from consumer electronics to automotive applications, with automated production lines and full-process quality control systems to help clients bridge the critical last mile from prototype to mass production.
