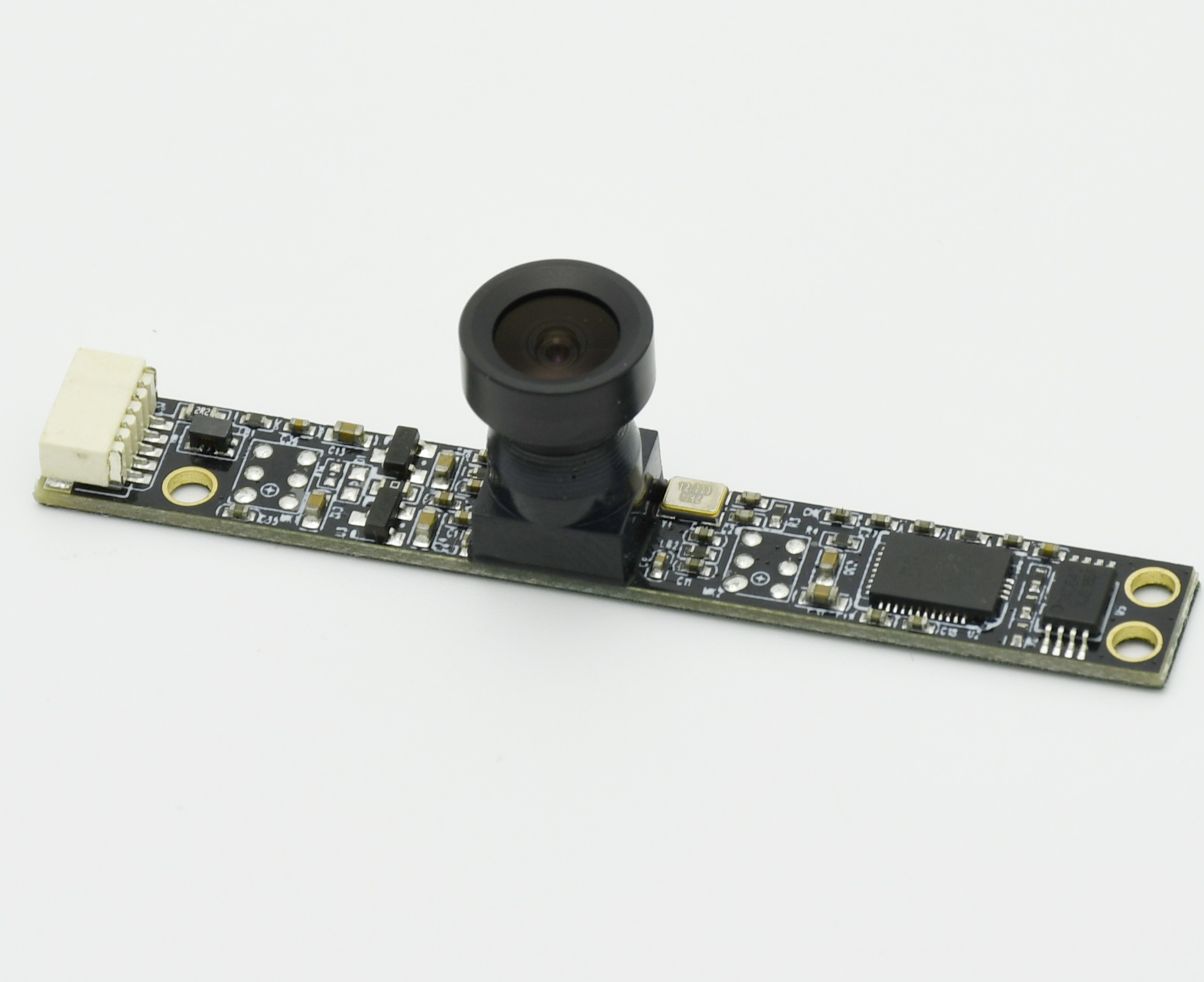

2MP HM2056 sensor with MIC module 1 / 5 COMS 30fps / 720p camera module

JSK-A41H56-V1.0-6037 2MP camera 1/2.7 COMS module PS5268 sensor horizontal screen camera Wide dynamic 95dB camera USB module 2MP摄像头1/2.7芯片宽动态95DB摄像头USB模组PS5268传感器横竖屏相机模组
click to consult
Product Specification

Description

JSK-A41H56-V1.0-6037

Optical size 1 / 5 "inch COMS sensor

Sensor resolution 1600 (H) x 1200 (V), uxga
Unit pixel size 1.75um
Color filter RGB Bayer pattem
Shutter type electronic rolling shutter
Max.capture frame rate 10fps@full resolution, 30 fps@SVGA ,30FPS/720p.
Maximum video frame rate 30fps@720P
Viewing angle 108 °
Aperture 2.4mm
AEC / gain / White Balance Auto
The focusing distance is fixed at 100cm
USB interface 2.0
Power supply DC 5V
Dimensions (mm) 60mm x 8mm x 13.3 / - 0.2mm
Operating temperature: - 10 ° C to + 60 ° C
Operating system requirements: Windows XP, Windows Vista, Windows 7, Android
Maximum pixel rate 28mp / S

Accuracy of ADC 10 ‐ bit
